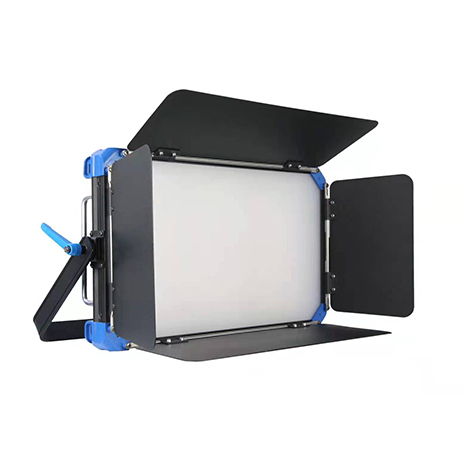

| 300W RGB+CW+WW LED soft panel light |
| Model：EC-PL300F |
 |
|
The operation is very simple,user-friendly design,dimmer without flicker,jitter phenomenon,stable performance fixed;advance cooling system design,natural heat dissipation,ultra-quiet;master-slave mode,no need to manually set the master and slave,and automatically receive the host data;lamp setting parameters.
|
|
|
|
| Photometrics
|
| Light Source:
|
420 (5050) high efficiency 0.2W 3-in-1 LED
420 (2835) high efficiency 0.2W LED cold white
420 (2835) high efficiency 0.2W LED warm white
|
Spot Angle :
|
135°
|
| Key Features
|
|
CRI:
|
≥95
|
| Color Mixing:
|
Red, green, blue, cold white, warm white linear mixing
|
Color temperature:
|
2700K-10000K
|
| Stroboscopic:
|
1-25/S independent electronic stroboscopic
|
| Dimming:
|
0-100 linear dimming, smooth dimming without flicker
|
| Control
|
| Control mode:
|
DMX512, 3-core interface
|
| DMX Channels:
|
10CH
|
Built-in Programs:
|
Yes
|
| Display:
|
LCD display + 4 soft keys
|
| Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
300W
|
| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
A3+AL
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
Convection
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
584x 352 x 111 mm
|
| Weight:
|
8.8 KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
