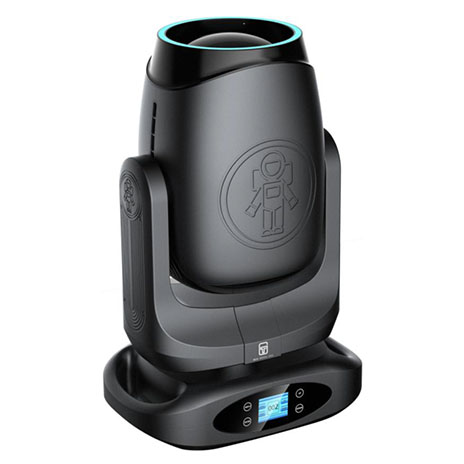

| 200W beam moving head light |
| Model：EC-H1 |
 |
|
The medium-sized light of 130MM caliber can take into account the overall size while ensuring the large caliber, and the peripheral ring with the horse running point control effect
|
|
|
|
| Photometrics
|
| Light Source:
|
1*100W LED module+48*3535 high bright LED
|
Beam Angle:
|
2 °
|
Pattern plate:
|
13+ white circle, two-way dithering painting, water effect
|
Color plate:
|
13+ white, reversible rotation, with half color effect
|
Prism:
|
24 prism
|
Six color plate:
|
can achieve 6 color beam effect
|
|
POWER
|
|
Mains
|
100-240 VAC, 50/60Hz
|
|
Consumption
|
150W
|
|
Power connections:
|
PowerCon in/out
|
|
KEY FEATURES
|
|
Pan movement:
|
540°
|
|
Tilt movement:
|
270°
|
|
Color Mixing:
|
RGBW
|
|
Strobe:
|
0~25 times/SEC, and adjustable stroboscopic speed
|
|
Dimming:
|
0-100% LED Linear dimming
|
|
CONTROL
|
|
Protocol:
|
DMX512
|
|
DMX channels:
|
10/15 channels
|
| Data connections:
|
3-pin XLR in/out, RJ45 interface
|
|
|
| Housing
|
| Material:
|
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
fan cooling
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
287*183*427 mm
|
|
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
